The Palmer PAN 02 Active DI Box can be operated with 9 V batteries or 48 V phantom power. High-impedance input; higher output level than with a passive DI box. Active circuitry allows for high input impedance ( 1 meg. ohm) and higher input sensitivity (typical difference between in and out -4 dB). Maximum output impedance with phantom power operation +10 dB. Output: transformer balanced. The special "floating ground" circuitry enables ground lift even during phantom power operation. Metal case 110 x 73 x 42 mm.

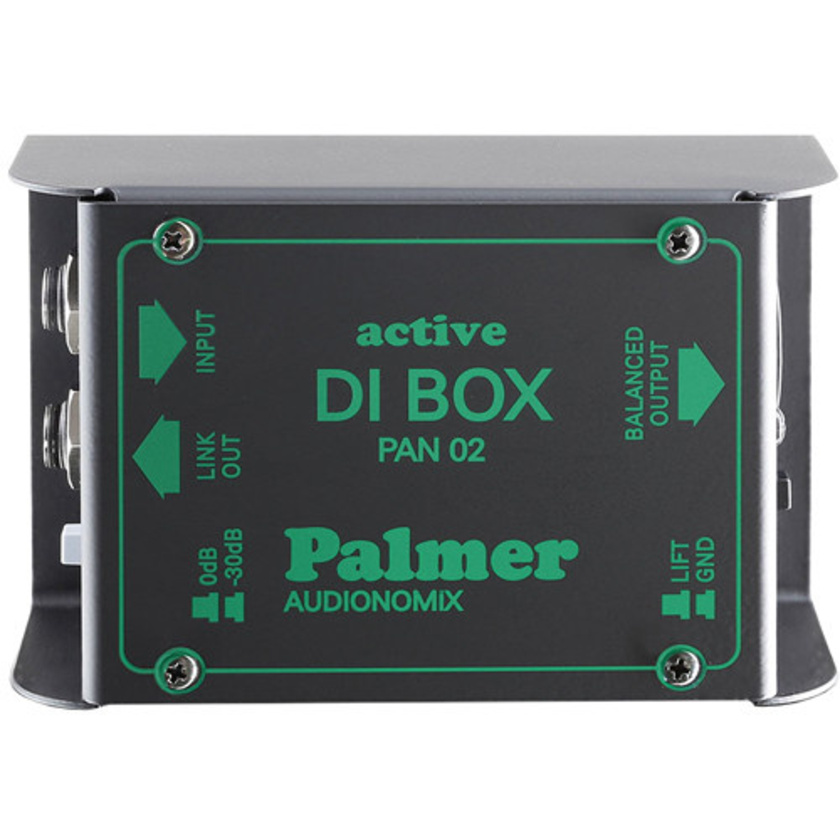

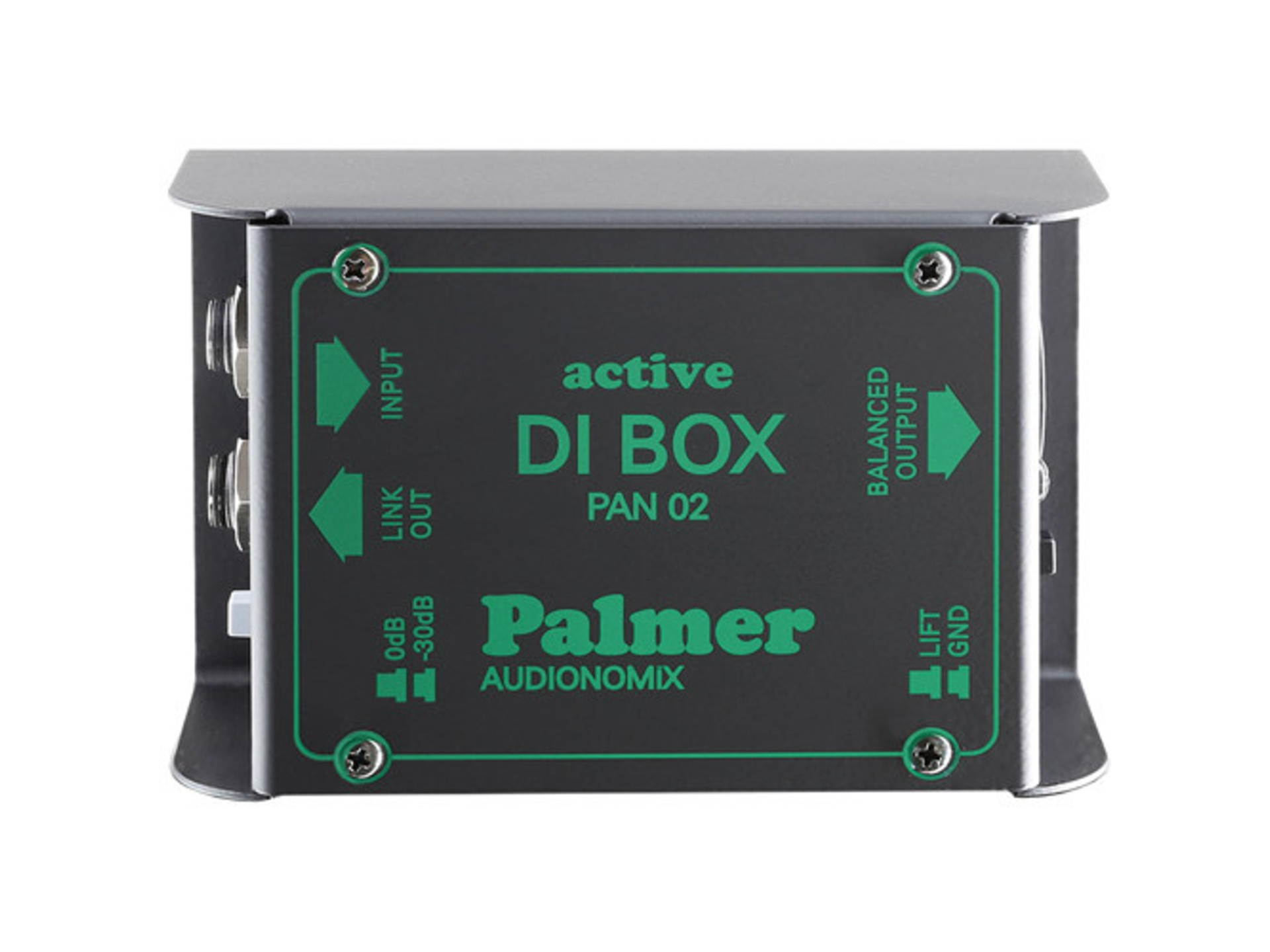

Palmer PAN 02 Active DI Box
Usually ships in 2 - 3 weeks
Our Price
$119
AUD
Usually ships in 2 - 3 weeks
Email me when stock arrives
Shipping & Availability
Usually ships in 2 - 3 weeks.
Deliver to
New South Wales
for $4.90
Change location
Click & Collect Availability
Sydney
Out of stock.
Pickup in
2 - 3 weeks
Click & Collect
Features
- Connect Keys, Bass & Guitar to Mic Input
- Additional Unbalanced XLR Input
- -10, -20, or -30 dB Pad
- 12 dB of Gain
- Transformer-Balanced Outputs
- Ground-Lift Switch, Soft-Ground Position
Description
Specifications
| General | |
| Item Type | Standard DI |
| Number of Channels | Single-Channel |
| Active/Passive | Active |
| Circuitry | Solid-State |
| Preamp | |
| Pad | -30 dB |
| Ground Lift | Yes |
| Polarity Reverse | No |
| AEQ & Tone Shaping | |
| Low-Cut/High-Pass Filter | No |
| Connectivity | |
| Audio I/O | 1x 1/4" TS Unbalanced Input 1x 1/4" TS Unbalanced Thru 1x XLR 3-Pin Balanced Output |
| Performance | |
| Frequency Response | 20 Hz to 40 kHz |
| Maximum Input Level | +45 dBu |
| Input Impedance | 1 Megohm |
| Output Impedance | 600 Ohms |
| Physical | |
| Dimensions | 4.4 x 2.91 x 1.7" / 111 x 74 x 43 mm |
| Weight | 0.74 lb / 0.35 kg |
In The Box
- Palmer PAN 02 Active DI Box
