The Palmer PAN04A PRO Active DI Box is 2-channel DI box for feeding asymmetrical and high impedance electric instrument signals into a mixing desk’s microphone inputs. It delivers a transformer balanced, low impedance signal to the outputs and eliminates mains hum and interference caused by ground loops. The active switch leaves the frequency response unaffected and achieves a high dynamic range. In addition to 6.35 mm direct outputs and -30 dB switchable input attenuation, the DI box also features a mono output that sums both channels. The PAN04A is designed to be exceptionally robust and is suitable for both stage and studio. It can be powered with 9 to 24 V DC mains adapters or phantom power when two outputs are connected to a mixer.

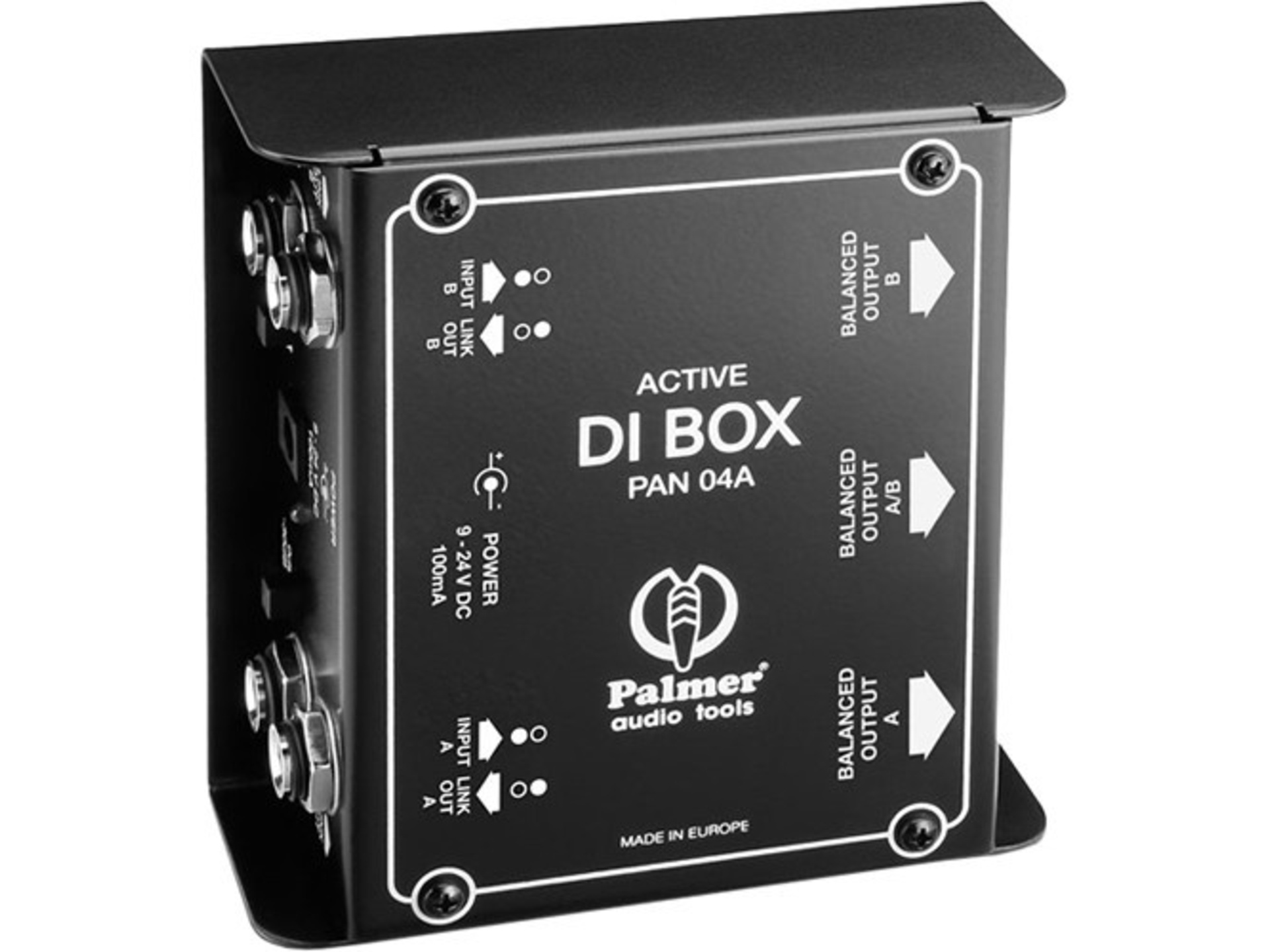

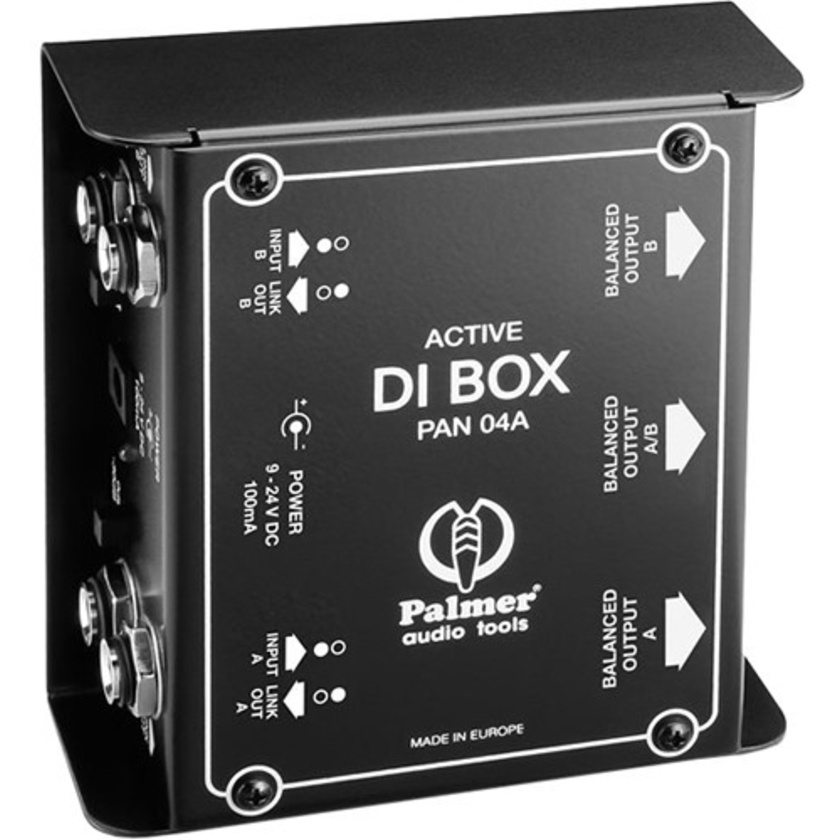

Palmer PAN04A PRO Active DI Box
In Stock with Supplier Usually ships in 2 - 3 working days
Sale Price
$229
AUD
was
$299.00
In Stock with Supplier Usually ships in 2 - 3 working days
ON SALE
in
Sales & Promotions
while stock lasts
Email me when stock arrives
Shipping & Availability
Usually ships in 2 - 3 working days.
Deliver to
New South Wales
for $5.90
Change location
Click & Collect Availability
Sydney
Out of stock.
Pickup in
2 - 3 working days
Click & Collect
Features
- Connect 2 Hi-Z Instruments to Mic Inputs
- 2 x 1/4" Inputs
- 2 x Transformer-Balanced XLR Outputs
- 1 x XLR Mono-Summing Output
- 2 x -30 dB Input Pads (1 per Channel)
- 2 x 1/4" Thru Puts for On-Stage Amps
Description
Specifications
| General | |
| Item Type | Standard DI |
| Number of Channels | 2-Channel |
| Active/Passive | Active |
| Circuitry | Solid-State |
| Preamp | |
| Pad | Yes |
| Ground Lift | Yes |
| Polarity Reverse | No |
| AEQ & Tone Shaping | |
| Low-Cut/High-Pass Filter | No |
| Connectivity | |
| Audio I/O | 2x 1/4" TS Unbalanced Input 2x 1/4" TS Unbalanced Thru 3x XLR 3-Pin Balanced Output |
| Performance | |
| Frequency Response | 10 Hz to 40 kHz |
| Maximum Input Level | +45 dBu |
| Input Impedance | 1 Megohm |
| Output Impedance | 200 Ohms |
| Physical | |
| Dimensions | 4.6 x 4.3 x 1.8" / 116 x 110 x 45 mm |
| Weight | 1 lb / 470 g |
In The Box
- Palmer PAN04A PRO Active DI Box
