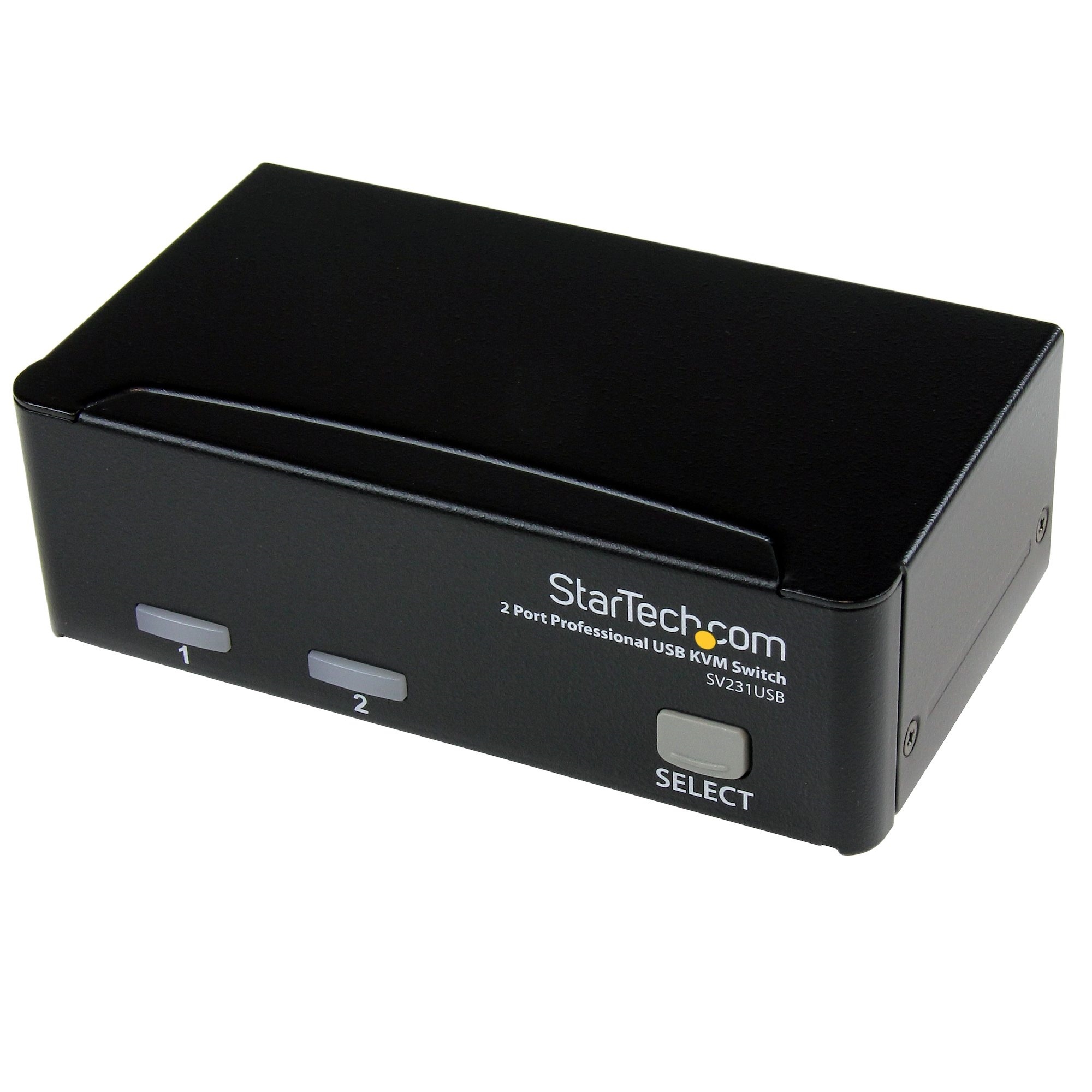

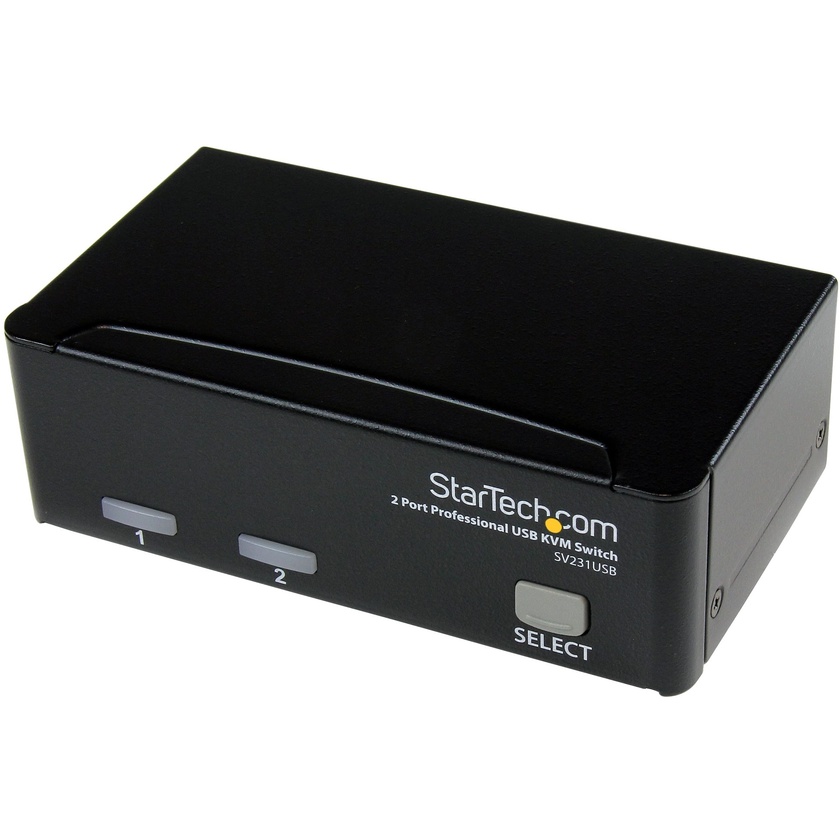

StarTech 2 Port Professional USB KVM Switch Kit

Product #84550 | SKU SV231USB | Startech
In Stock with Supplier Usually ships in 3 - 4 working days what does this mean?
Not currently for sale
Contact us for more information
In Stock with Supplier Usually ships in 3 - 4 working days what does this mean?

Features

  • OS independent - No software or drivers required
  • Supports keyboard and mouse plug and play
  • Selectable auto scan time interval
  • Supports DDC2B VGA monitors
  • USB self-power operation

Description

The StarTech 2 Port Professional USB KVM Switch Kit with Cables offers simple control of two Mac or PC computers from a single monitor/display and USB peripheral set (keyboard, mouse).

Key Features:

  • Control 2 computers from one USB keyboard/mouse/monitor
  • Share 3 different USB peripherals using the integrated hub
  • High 1920x1440 resolution capability
  • Front panel push buttons for easy computer selection
  • OS independent - No software or drivers required
  • Supports keyboard and mouse plug and play
  • Selectable auto scan time interval
  • Supports DDC2B VGA monitors
  • USB self-power operation

The 2 Port KVM switch includes 2 USB KVM cables, providing a complete out-of-the-box KVM solution saving you time and money. An integrated 3 port USB hub allows you to share connected USB peripherals between connected computers as though they were connected directly. A compact form factor design and rear-port connections to master and slave computers minimizes disruption to your workspace.

A cross-platform solution, this OS independent KVM switch supports high resolution applications up to 1920x1440, and provides a smooth operating experience when controlling mixed (Windows/Mac/Linux) environments.

Specifications

Connector
1 - Console Interface(s) VGA (15 pin, High Density D-Sub)
3 - Console Interface(s) USB Type-A (4 pin) USB 2.0
2 - Host Connectors USB B (4 pin)
VGA (15 pin, High Density D-Sub)
Hardware
Audio No
KVM Ports 2
PC Interface USB
PC Video Type VGA
Number of Monitors Supported 1
Rack-Mountable No
Cables Included Yes
U Height 1U
Daisy-Chain No
Packaging Information
Package Height 3.6 in [92 mm]
Package Length 9.4 in [23.8 cm]
Shipping (Package) Weight 2.5 lb [1.1 kg]
Package Width 7.4 in [18.7 cm]
Performance
On-Screen Display No
DVI Support No
IP Control No
Hot-Key Selection No
Maximum Cable Length 15.0 ft [4.6 m]
Maximum Analog Resolutions 1920 x 1440
Auto Scan 3, 8, 15 & 30 seconds
Maximum Number of Users 1
Port Selection Support Push Button
MTBF 111,000 Hours
Physical Characteristics
Weight of Product 14.9 oz [421 g]
Color Black
Material Steel
Cable Length 6.0 ft [1.8 m]
Product Length 4.9 in [12.4 cm]
Product Width 2.8 in [70 mm]
Product Height 1.6 in [40 mm]
Power
Power Source AC Adapter Included
Input Voltage 100 - 240 AC
Input Current 0.4A
Output Voltage 5 DC
Output Current 2A
Center Tip Polarity Positive
Plug Type N
N
Power Consumption (In Watts) 10

In The Box

  • 2 Port USB KVM Switch
  • 2 x 2 IN 1 USB/VGA Cables
  • Power Adapter
  • Manual

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: StarTech 2 Port Professional USB KVM Switch Kit
  • Manufacturer: Startech
  • Model: SV231USB
  • SKU: SV231USB
  • RM Product #: 84550
