The Accsoon CineView Master 4K II Wireless Video Receiver enables wireless transmission of DCI 4K60 video over distances of up to 2.6 km. When paired with a compatible transmitter, it forms a next-generation flagship wireless video transmission system. Using 2.4/5/6 GHz tri-band wireless technology to receive video signals, the receiver supports video output up to DCI/UHD 4K via HDMI and 1080p60 via 3G-SDI. Its tri-band transmission delivers ultralow latency, measuring below 25 ms at 1080p60 and below 35 ms at 4K60.

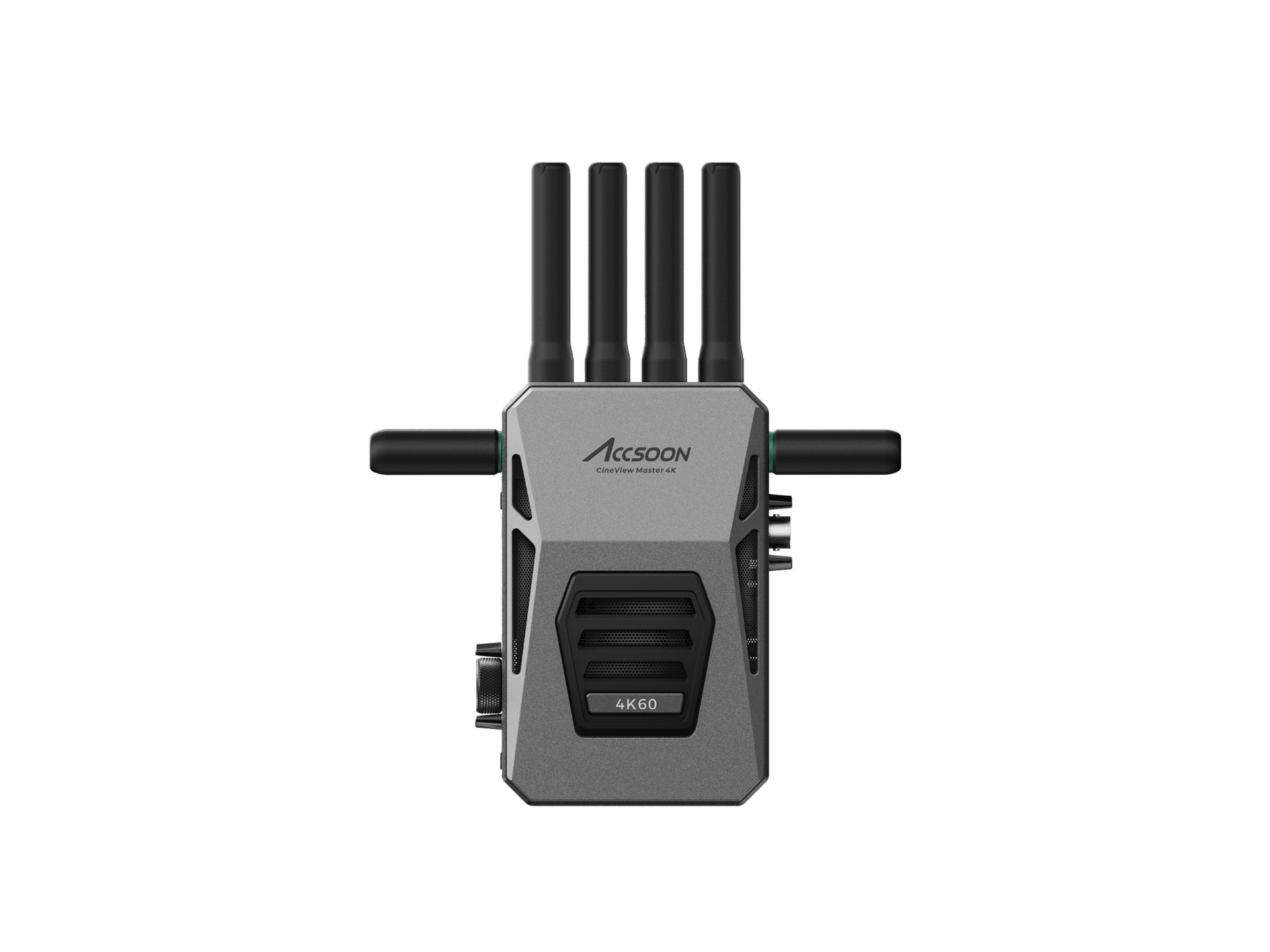

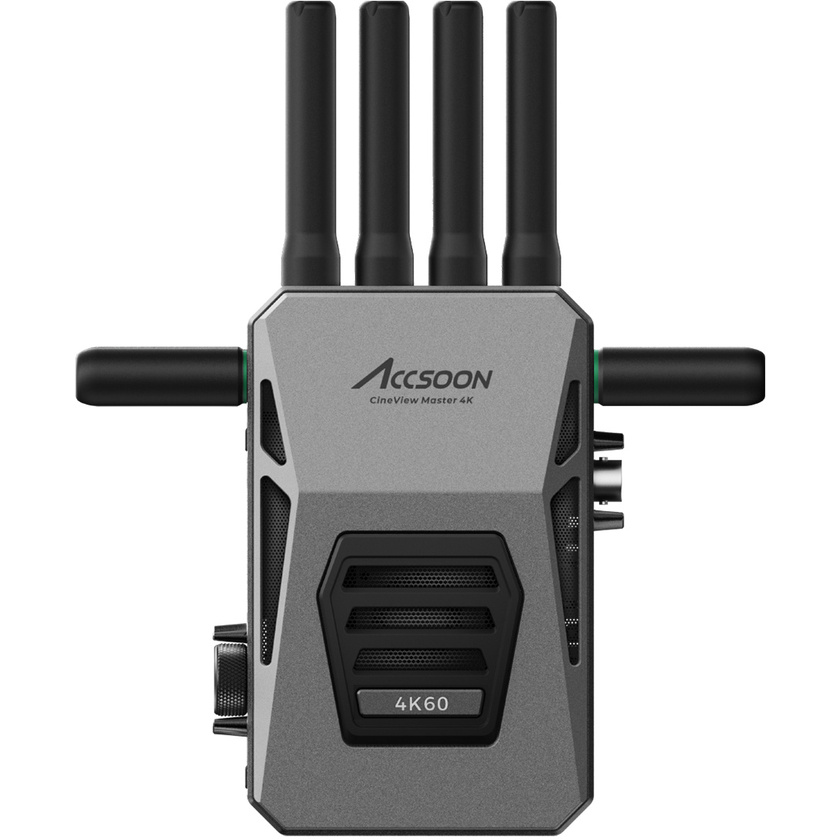

Accsoon CineView Master 4K II Wireless Video Receiver
Coming Soon ETA to be confirmed
$729
AUD
Coming Soon ETA to be confirmed
Delivery Options
Calculate ShippingFREE Pickup
View stock availability
Or RENT from
per .
Return any time after minimum rental agreement
Email me when stock arrives
Have a question about this product?
Send us a message
Features
- DCI 4K60 via HDMI | 1080p60 via 3G-SDI
- Tri-Band 2.4/5/6 GHz Video Receiver
- Video Transmission up to 1.6 Miles
- Latency <35 ms in 4K & <25 ms in HD
- Monitor on 10 Connected Devices
- MFi-Compatible USB-C Video Output
Description
Specifications
| General | |
| A/V Processor | 8K High Performance A/V Processor |
| Protocol | Accsoon Proprietary RTMS 4.0 Protocol |
| Frequency | 2.4GHz+5GHz+6GHz (DFS supported) |
| RF Power | 23dBm |
| DC Port | 5.5mmx2.1mm, center positive |
| DC Voltage | 7.4~16.8V |
| Battery Slot | Compatible with NP-F550, NP-F750, NP-F970 |
| Audio | 48KHz 16/20/24bit |
| Latency | 1080p < 25ms 4K ＜ 35ms (60fps, Camera latency not included)" |
| Transmission Range | ≥ 2.5 km (No obstacles, no interference) |
| Mobile App Compatible | Yes Wireless Connection: Android & iOS Wired Connection: iOS |
| Mounting | 1x 1/4"-20 Female (Bottom) |
| Material of Construction | Aluminum Alloy |
| Operating Environment Temperature | -10~40℃ |
| Dimensions (Antennas Not Included) | 130mm x 95mm x 32 mm |
| Receiver | |
| Video Output | HDMI, 3G SDI |
| USB-C Video Output to iOS | No |
| SDI Output Format | 1080p: 23.98/24/25/29.97/30/50/59.94/60fps Level A 720p: 50/60p |
| HDMI Output Format | 4K (3840*2160): 23.98/24/25/29.97/30/50/59.94/60fps 1080p: 23.98/24/25/29.97/30/50/59.94/60fps 720p: 50/60p |
| Power Consumption | 5.0W average |
| Weight (Antennas Not Included) | 320g |
In The Box
- Accsoon CineView Master 4K II Receiver
- Cold Shoe Mount Adapter
- 2.4GHz/5Ghz Antenna ×4
- 6GHz Antenna ×2
- Allen Key
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Accsoon CineView Master 4K II Wireless Video Receiver
- Manufacturer: Accsoon
- Model: WIT07-M-RX
- SKU: WIT07-M-RX
- RM Product #: 128026
- Configuration: Receiver Only
