Accsoon CineView Master 4K II Wireless Video Transmission System

Product #128024 | SKU WIT07-M | Accsoon
| Write a review
Coming Soon ETA to be confirmed

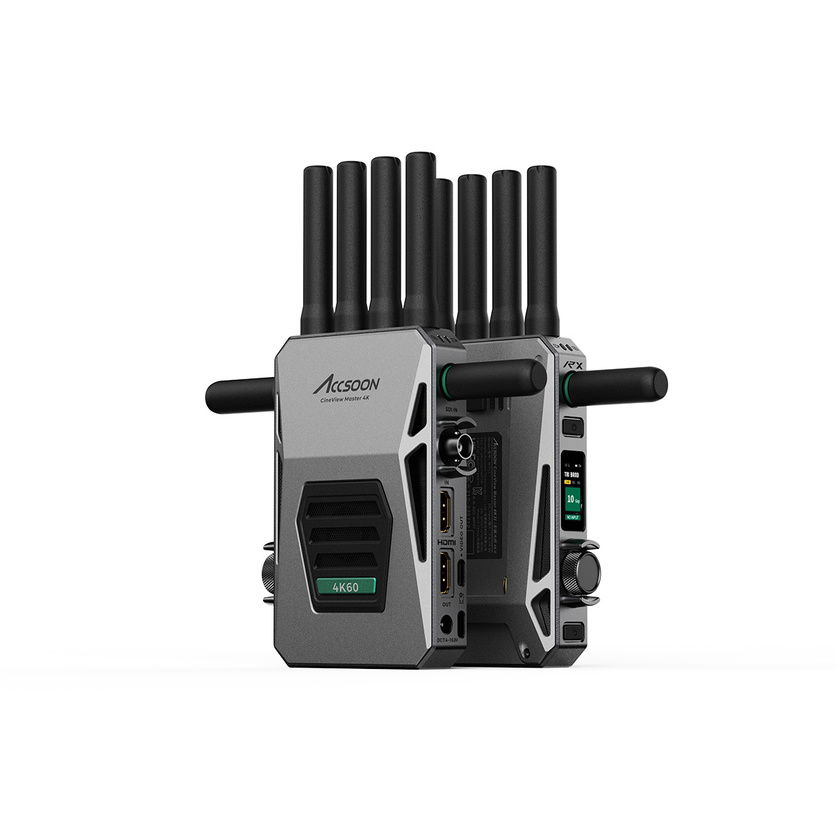

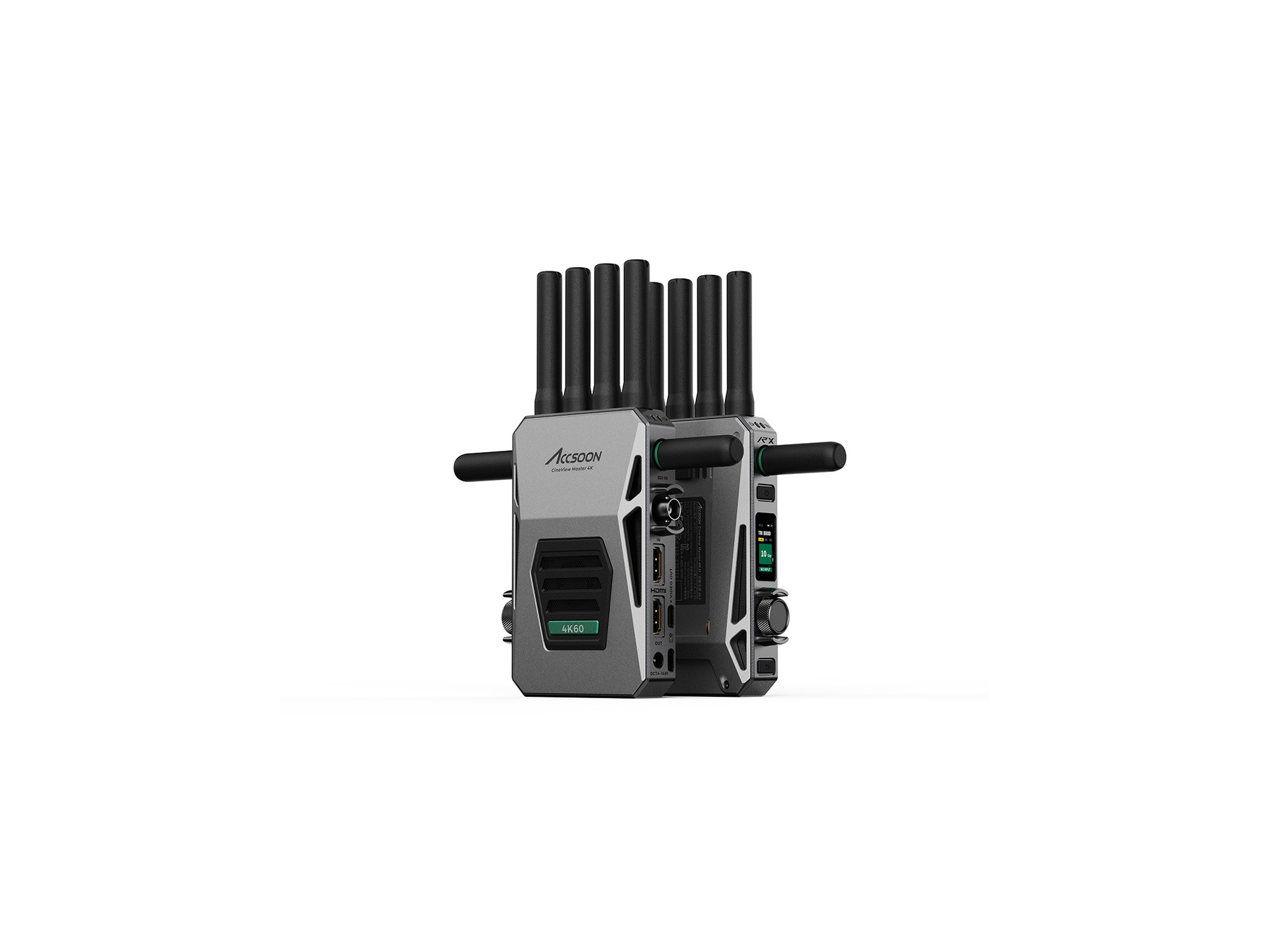

Accsoon CineView Master 4K II Wireless Video Transmission System
New
$1,309 AUD
Coming Soon ETA to be confirmed
- +
Delivery Options
Calculate Shipping
FREE Pickup
View stock availability
Afterpay Zip + More
Or RENT from per .
Return any time after minimum rental agreement
Email me when stock arrives
Have a question about this product? Send us a message
Request price match
View our returns policy

Features

  • Receiver & Transmitter Kit
  • DCI 4K60 via HDMI | 1080p60 via 3G-SDI
  • Tri-Band 2.4/5/6 GHz Video Transmission
  • Video Transmission up to 1.6 Miles
  • Latency <35 ms in 4K & <25 ms in HD
  • Monitor on 10 Connected Devices

Description

The Accsoon CineView Master 4K II Wireless Video Transmission System pairs Accsoon's wireless receiver and transmitter to create a powerful tri-band video transmission setup for on-set monitoring.

Accsoon CineView Master 4K II Wireless Video Transmitter

Enabling wireless transmission of DCI 4K60 video across distances up to 2.6 km, the Accsoon CineView Master 4K II Wireless Video Transmitter pairs with a compatible receiver to create a next-generation flagship in wireless video transmission systems. Transmitting video signals via 2.4/5/6 GHz wireless technology, the transmitter accepts video input up to DCI/UHD 4K via HDMI and 1080p60 via 3G-SDI. Its tri-band transmission allows ultralow latency, below 25 ms at 1080p60 and below 35 ms at 4K60.

Accsoon CineView Master 4K II Wireless Video Receiver

Enabling wireless transmission of DCI 4K60 video across distances up to 2.6 km, the Accsoon CineView Master 4K II Wireless Video Receiver pairs with a compatible transmitter to create a next-generation flagship in wireless video transmission systems. Receiving video signals via 2.4/5/6 GHz tri-band wireless technology, the receiver outputs video up to DCI/UHD 4K via HDMI and 1080p60 via 3G-SDI. Its tri-band transmission allows ultralow latency, below 25 ms at 1080p60 and below 35 ms at 4K60.

Specifications
General
A/V Processor 8K High Performance A/V Processor
Protocol Accsoon Proprietary RTMS 4.0 Protocol
Frequency 2.4GHz+5GHz+6GHz (DFS supported)
RF Power 23dBm
DC Port 5.5mmx2.1mm, center positive
DC Voltage 7.4~16.8V
Battery Slot Compatible with NP-F550, NP-F750, NP-F970
Audio 48KHz 16/20/24bit
Latency 1080p < 25ms
4K ＜ 35ms (60fps, Camera latency not included)"
Transmission Range ≥ 2.5 km (No obstacles, no interference)
Mobile App Compatible Yes
Wireless Connection: Android & iOS
Wired Connection: iOS
Mounting 1x 1/4"-20 Female (Bottom)
Material of Construction Aluminum Alloy
Operating Environment Temperature -10~40℃
Dimensions (Antennas Not Included) 130mm x 95mm x 32 mm
Transmitter
Video Input HDMI, 3G SDI
Video Output HDMI Loop-Out
USB-C Video Output to iOS Yes
SDI Input Format 1080p: 23.98/24/25/29.97/30/50/59.94/60fps Level A/B
1080i: 50/59.94/60i
720p: 50/59.94/60p
HDMI Input Format 4K (3840*2160): 23.98/24/25/29.97/30/50/59.94/60p
1080p: 23.98/24/25/29.97/30/50/59.94/60p
1080i: 50/59.94/60i
720p: 50/59.94/60p
HDMI Loop-out Format Identical to the HDMI video input
Power Consumption 6.5W average *Without powering other devices
Weight (Antennas Not Included) 322g
Receiver
Video Output HDMI, 3G SDI
USB-C Video Output to iOS No
SDI Output Format 1080p: 23.98/24/25/29.97/30/50/59.94/60fps Level A
720p: 50/60p
HDMI Output Format 4K (3840*2160): 23.98/24/25/29.97/30/50/59.94/60fps
1080p: 23.98/24/25/29.97/30/50/59.94/60fps
720p: 50/60p
Power Consumption 5.0W average
Weight (Antennas Not Included) 320g

In The Box

  • Accsoon CineView Master 4K II Transmitter
  • Accsoon CineView Master 4K II Receiver
  • Cold Shoe Mount Adapter ×2
  • 2.4GHz/5Ghz Antenna ×8
  • 6GHz Antenna ×4
  • Allen Key

Reviews

0.0 (no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:
Write a review

Details

  • Product: Accsoon CineView Master 4K II Wireless Video Transmission System
  • Manufacturer: Accsoon
  • Model: WIT07-M
  • SKU: WIT07-M
  • RM Product #: 128024
  • Configuration: Transmission System (1TX + 1RX)
