Enabling wireless transmission of DCI 4K60 video across distances up to 2.6 km, the Accsoon CineView Master 4K II Wireless Video Transmitter pairs with a compatible receiver to create a next-generation flagship in wireless video transmission systems. Transmitting video signals via 2.4/5/6 GHz wireless technology, the transmitter accepts video input up to DCI/UHD 4K via HDMI and 1080p60 via 3G-SDI. Its tri-band transmission allows ultralow latency, below 25 ms at 1080p60 and below 35 ms at 4K60.

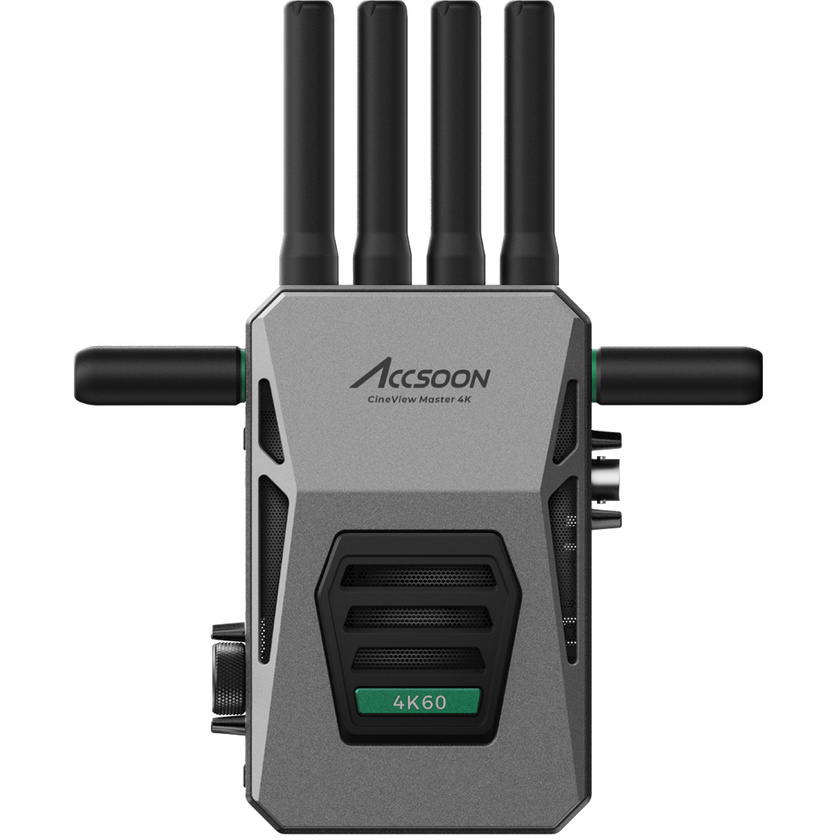

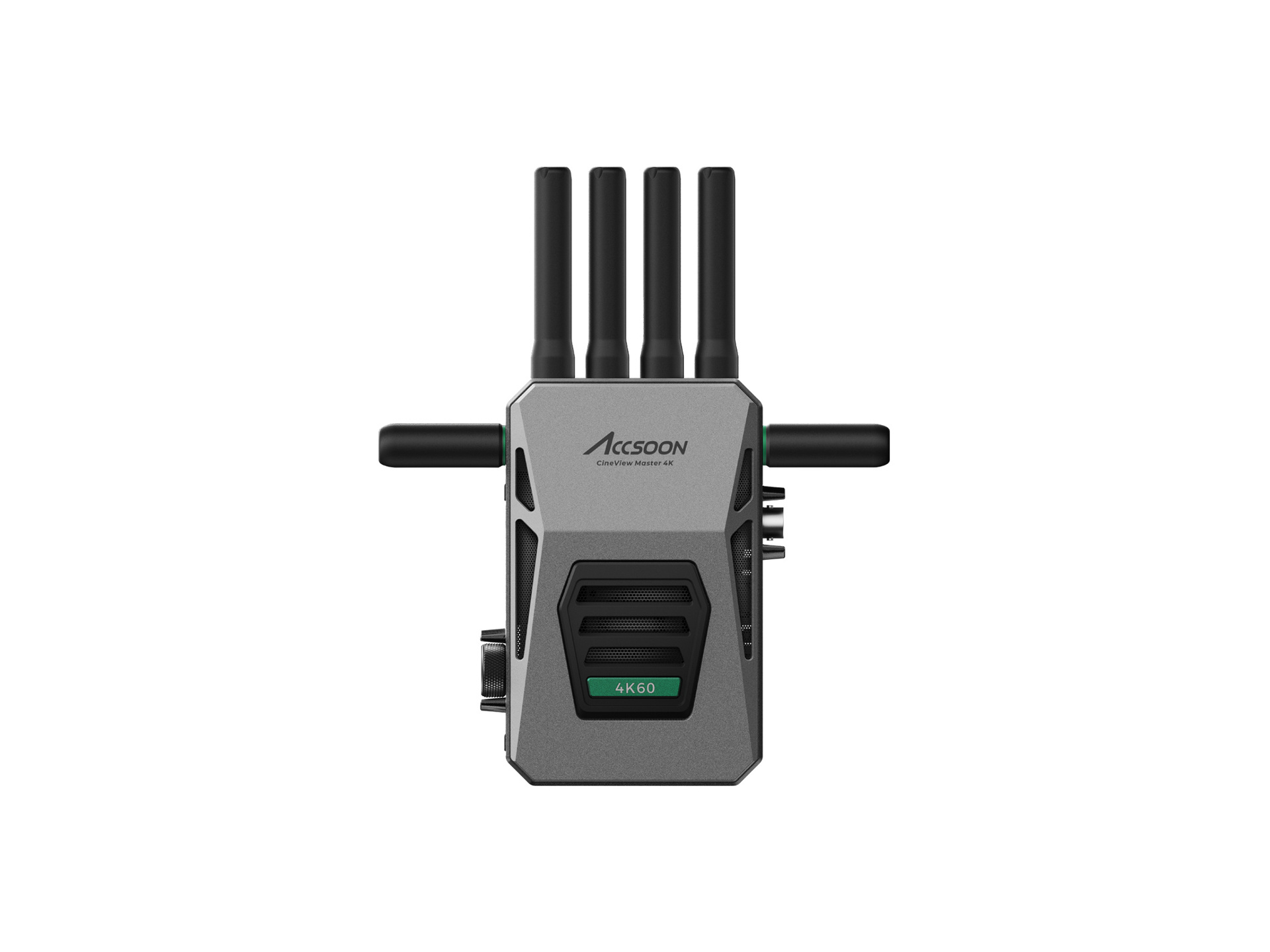

Accsoon CineView Master 4K II Wireless Video Transmitter
Coming Soon ETA to be confirmed
$729
AUD
Coming Soon ETA to be confirmed
Delivery Options
Calculate ShippingFREE Pickup
View stock availability
Or RENT from
per .
Return any time after minimum rental agreement
Email me when stock arrives
Have a question about this product?
Send us a message
Features
- DCI 4K60 via HDMI | 1080p60 via 3G-SDI
- Tri-Band 2.4/5/6 GHz Video Transmitter
- Video Transmission up to 1.6 Miles
- Latency <35 ms in 4K & <25 ms in HD
- Monitor on 10 Connected Devices
- MFi-Compatible USB-C Video Output
Description
Specifications
| General | |
| A/V Processor | 8K High Performance A/V Processor |
| Protocol | Accsoon Proprietary RTMS 4.0 Protocol |
| Frequency | 2.4GHz+5GHz+6GHz (DFS supported) |
| RF Power | 23dBm |
| DC Port | 5.5mmx2.1mm, center positive |
| DC Voltage | 7.4~16.8V |
| Battery Slot | Compatible with NP-F550, NP-F750, NP-F970 |
| Audio | 48KHz 16/20/24bit |
| Latency | 1080p < 25ms 4K ＜ 35ms (60fps, Camera latency not included)" |
| Transmission Range | ≥ 2.5 km (No obstacles, no interference) |
| Mobile App Compatible | Yes Wireless Connection: Android & iOS Wired Connection: iOS |
| Mounting | 1x 1/4"-20 Female (Bottom) |
| Material of Construction | Aluminum Alloy |
| Operating Environment Temperature | -10~40℃ |
| Dimensions (Antennas Not Included) | 130mm x 95mm x 32 mm |
| Transmitter | |
| Video Input | HDMI, 3G SDI |
| Video Output | HDMI Loop-Out |
| USB-C Video Output to iOS | Yes |
| SDI Input Format | 1080p: 23.98/24/25/29.97/30/50/59.94/60fps Level A/B 1080i: 50/59.94/60i 720p: 50/59.94/60p |
| HDMI Input Format | 4K (3840*2160): 23.98/24/25/29.97/30/50/59.94/60p 1080p: 23.98/24/25/29.97/30/50/59.94/60p 1080i: 50/59.94/60i 720p: 50/59.94/60p |
| HDMI Loop-out Format | Identical to the HDMI video input |
| Power Consumption | 6.5W average *Without powering other devices |
| Weight (Antennas Not Included) | 322g |
In The Box
- Accsoon CineView Master 4K II Transmitter
- Cold Shoe Mount Adapter
- 2.4GHz/5Ghz Antenna ×4
- 6GHz Antenna ×2
- Allen Key
Reviews
(no ratings yet)
Own or use this product?
Give it a quick rating:
Thanks for your rating!
Share your thoughts with other customers:Give it a quick rating:
Thanks for your rating!
Write a review
Details
- Product: Accsoon CineView Master 4K II Wireless Video Transmitter
- Manufacturer: Accsoon
- Model: WIT07-M-TX
- SKU: WIT07-M-TX
- RM Product #: 128025
- Configuration: Transmitter Only
